STARCO supplies and commissions pAudio public address and voice alarm (PA/VA) systems, used where a building needs spoken evacuation instructions rather than a sounder tone — schools, hospitals, terminals, malls and large residential developments.
Voice alarm is increasingly required by the Abu Dhabi Civil Defence code for buildings above a certain size and occupancy. We design the loudspeaker layout for intelligibility, integrate the system with the fire alarm panel, and commission it as part of the same package.
Ranges we supply
IVO Compact voice alarm system
A wall-mounted PA/VA system for small and medium buildings, supplied programmed and ready to commission. Supports phased evacuation on two audio streams, up to 16 loudspeaker lines and 1000 W of connected loudspeakers, with 24 hours standby and 30 minutes of alarm from the integral power supply. EN 54 compliant.
-
IVO Compact wall-mounted system
IVO rack systems and controllers
The rack-mounted system for larger buildings and campuses, sharing the same microphones and intercoms as the Compact and networkable to a maximum of 32 subsystems, so a site can be zoned and controlled from more than one point.
-

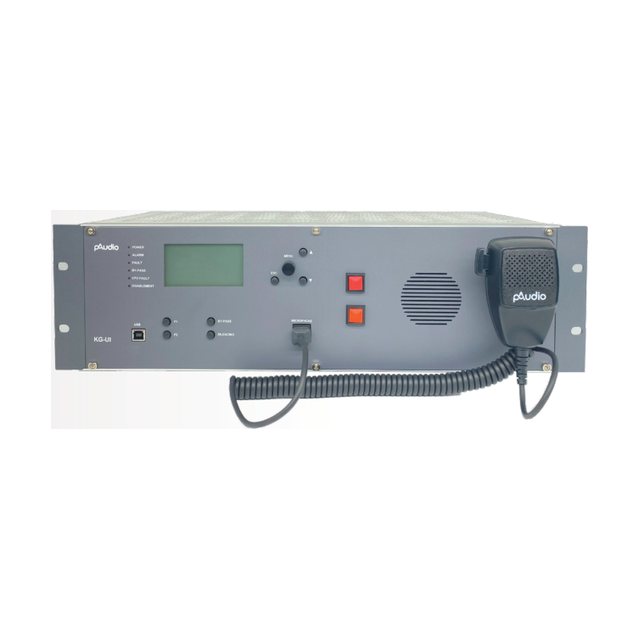

System controller — KG-ETH -

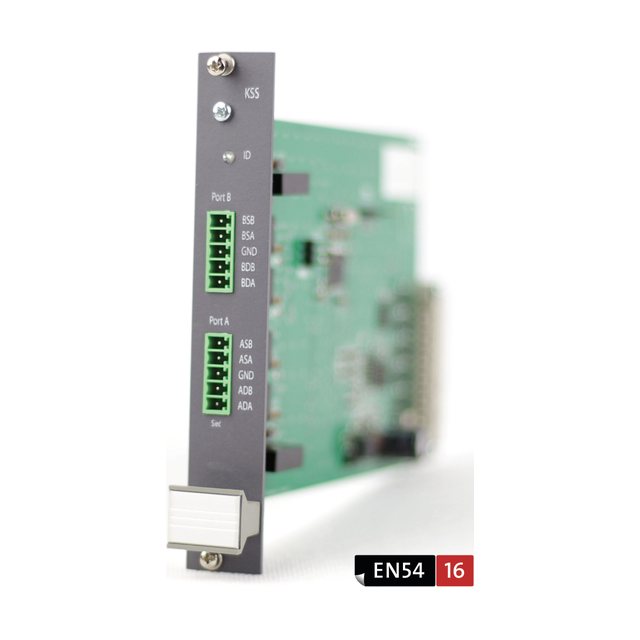

Network system card — KSS -

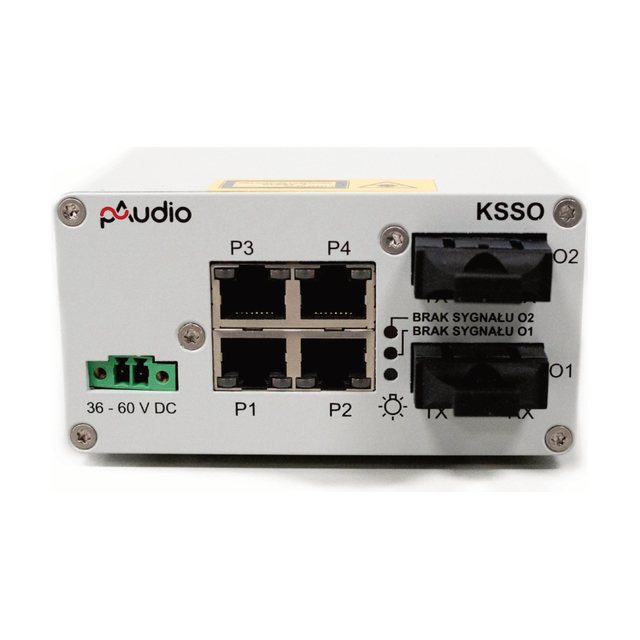

Fibre optic converter — KSSO
System cards and modules
Plug-in cards that adapt a system to the building: microphone and intercom inputs, analogue audio sources for background music or pre-recorded messages, and copper or fibre network connections between subsystems.
-

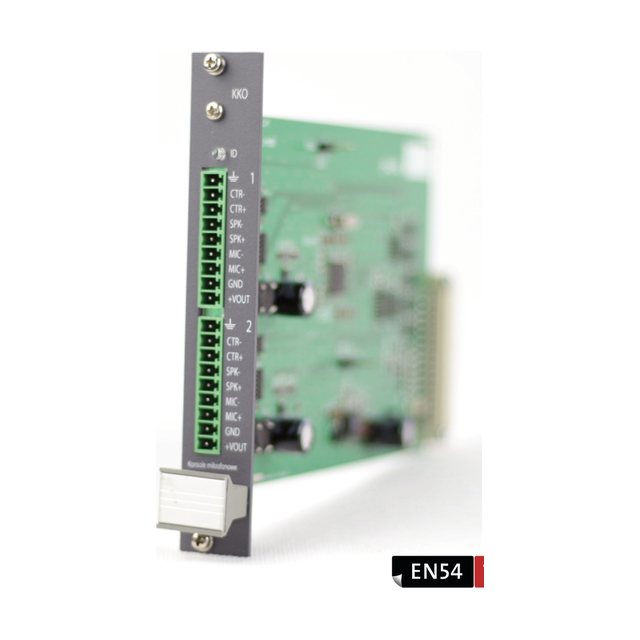

Microphone console card — KKO -

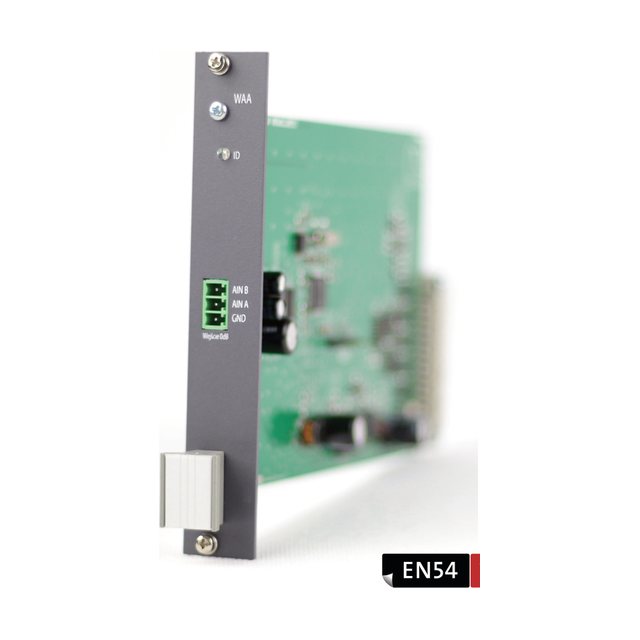

Global audio input card — WAA
Amplifiers and power supplies
Digital power amplifiers and monitored, battery-backed power supplies sized to the loudspeaker load, with redundant amplification so a single failure does not silence a zone.
-

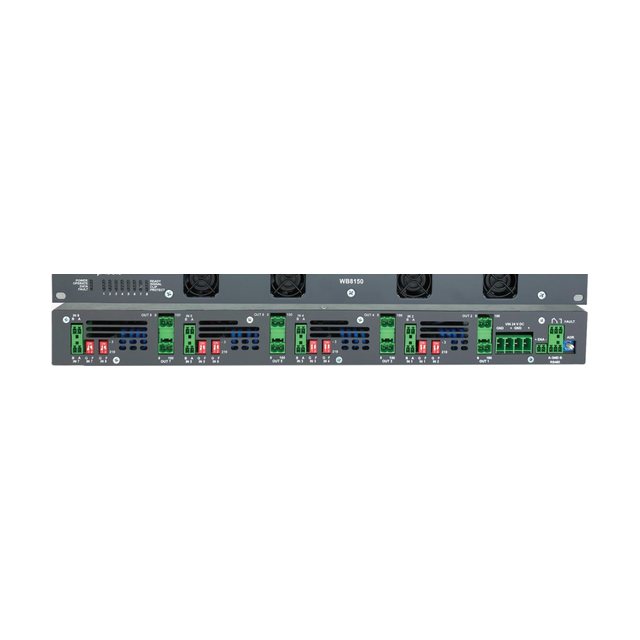

Digital power amplifier — WB series -
System power supply — ZDSOP24
Microphones, intercoms and accessories
Alarm and paging microphones for the fire control point and reception areas, fire intercom stations for firefighter communication, and the junction boxes and cabling accessories that go with them.
-

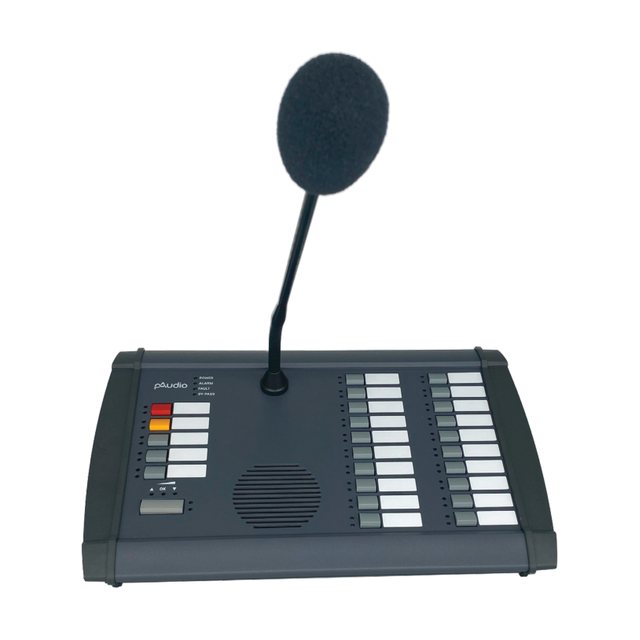

Desktop paging console — MA series -

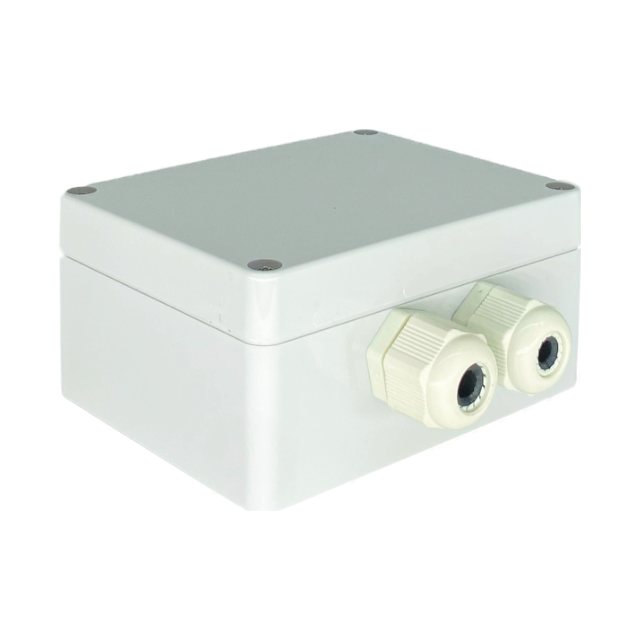

Junction box — PP
Loudspeakers
Ceiling, wall, column and horn loudspeakers selected by area and acoustic environment — flush ceiling units in offices and corridors, splash-proof units in wet areas, columns where intelligibility matters over distance, and horns for car parks and external areas.
-

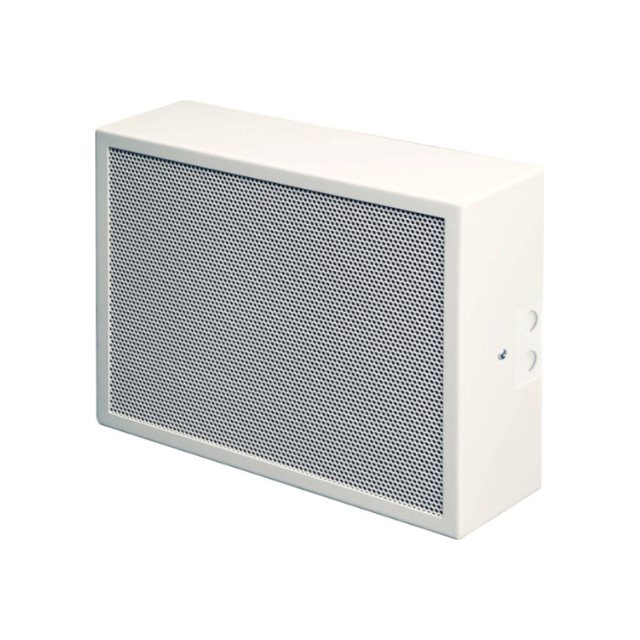

Metal wall cabinet — WMS-R-06W-M -

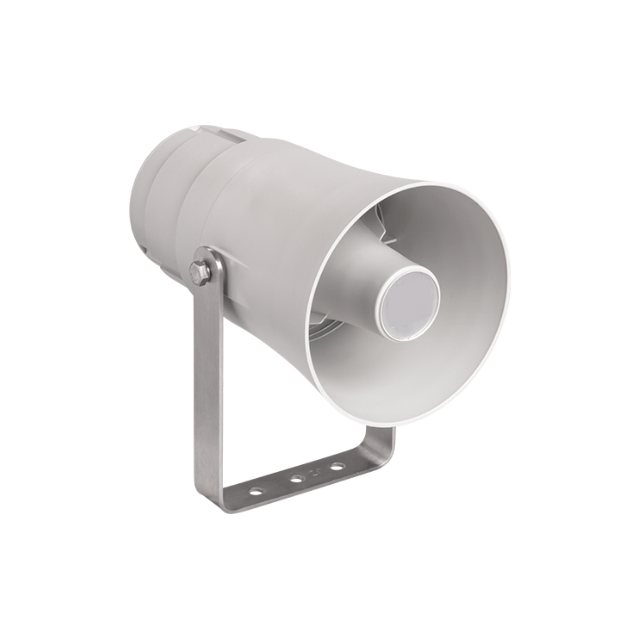

Horn — HS-10W-ABS -

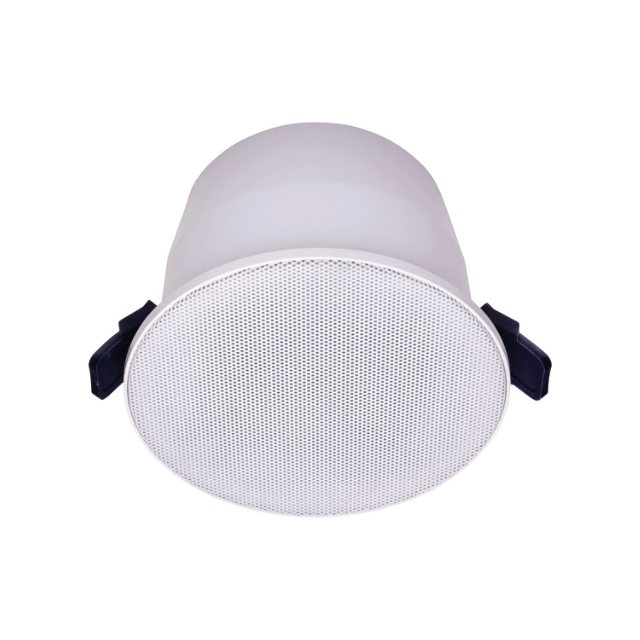

Splash-proof ceiling — CSSP-06W-140 -

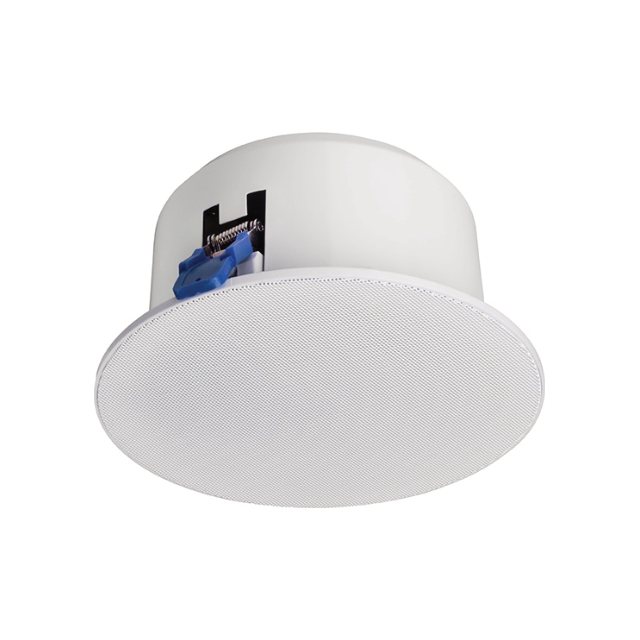

Frameless ceiling — CSFLD-06W-130 -

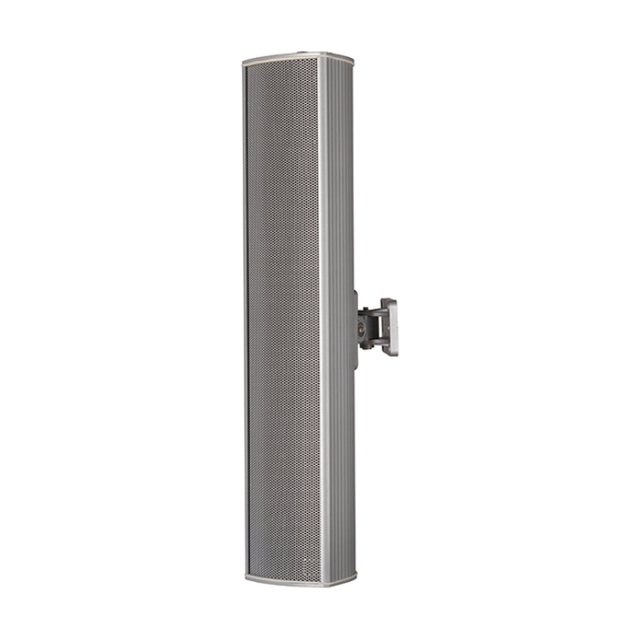

Column — CLS-20W-AL
pAudio is a trademark of pAudio Technologies. STARCO Fire Protection Engineers supplies, installs and commissions this equipment; product specifications and model codes are the manufacturer’s and are subject to change.
